Common Bad Voltage Regulator Symptoms In Cars – Causes and Possible Fixes

If there is one aspect of a car’s internal workings that we occasionally tend to overlook, it is the fact that there are other crucial consumables besides fuel. For instance, your battery serves as the fuel source that allows all of that gasoline and diesel to burn, generating power.

Given its significance, it is beyond necessity that we comprehend this electrical system, including what causes the symptoms of a failing voltage regulator.

Mind you, your car’s engine requires more than just a spark to function. Your car is entirely powered by electricity, including all of the essential components like the headlights and taillights.

There are also extras like the radio and heated seats, as well as security features like airbags. These components can instantly stop functioning if they aren’t getting their fair share of electrons.

At the very least, this might make your car unable to function properly. It could make you uncomfortable or even endanger your life.

Therefore, we must be able to quickly diagnose issues with your car’s electrical system, such as being able to recognize the signs of a bad voltage regulator. Here is everything you require to get going.

What Is It That You Need to Know About the Voltage Regulator In Your Car?

Get to know what the aforementioned component does in your car before delving deeper into the symptoms of a bad voltage regulator. Before learning more about the function it serves, though, it’s important to review how electricity is produced. How, specifically, can a car have an electron flow that seems constant and seemingly never ends?

1. Car lead acid battery after explosionA faulty voltage regulator could cause serious harm to your car battery, rendering it useless. The voltage regulator ensures that the charging voltage and power for the vehicle battery and other electronic components are constant.

The battery and alternator, two separate parts, have contributed to this. As is common knowledge, the battery is where your car gets its electricity from. The average car battery is 12 volts or close to it. While larger vehicles like semi-trucks or buses might have their battery output double that, at about 24 volts, or something similar.

Despite this, humankind does not yet possess a battery technology that could provide a 12V car battery with a full charge for an average of five years. So how does it accomplish this? The alternator in your car will come in handy here.

It can be compared to a tiny generator, perhaps. When your engine is running, the alternator is continuously running because it is connected to the engine by a belt.

In this manner, the alternator will steadily recharge and maintain the charge of your vehicle’s battery, whether it is 12V or not. Many mechanics contend that the alternator is the actual source of electricity in a car in light of this.

While the battery only serves as short-term storage. As a result, it enables the alternator and battery to continuously supply electricity.

What are the Common Bad Voltage Regulator Symptoms In a Car?

Your car’s voltage regulator is in charge of ensuring that certain components always receive the proper amount of electrical power. This means that if the voltage regulator is damaged, the electrical system’s parts may only function inconsistently or not at all.

That’s a significant issue because you depend on your car’s battery and lights to get around. Therefore, checking on this important car component is a good place to start if you want to get your car in good working order. Here’s how to identify a bad voltage regulator.

1. The Battery That Has Completely Failed

Your car battery could suffer severe damage from a defective voltage regulator, which would render it useless. The voltage regulator makes sure that the vehicle battery and other electronic components receive constant charging voltage and power.

Your battery may not get enough charge, get overcharged, or be exposed to an excessive charging voltage if your voltage regulator has burned out.

Your battery’s charging output will be depleted by the electrical systems of your car if it doesn’t receive enough power. Your car’s battery will eventually die as all the charge is used up, making it impossible for you to start your car.

On the other hand, if your battery is overcharged or exposed to a high charging voltage, it could explode or the electrolytes inside it could start to boil, which would cause leakage and swelling in your car battery.

A faulty voltage regulator is not the only factor that could cause your car’s battery to die.

  • Your alternator is malfunctioning and cannot charge your battery.
  • You over-extended the use of electrical equipment, such as the headlights while the engine was off.
  • Your vehicle was idle for an extended period.

In any case, you can use jumper cables and a vehicle with a charged battery to quickly recharge your bad battery (or dead battery). That’s only a short-term solution though, as the moment your car starts moving, any power transferred via the cables would quickly run out.

2. Projector headlamps on a Mercedes Benz C Class
Projector headlamps on a Mercedes Benz C-Class by Premnath Kudva / CC BY-SA 3.0. Another indication that the voltage regulator is broken is when the car lights keep dimming or flickering. Given that the voltage regulator’s responsibility is to maintain the power supply to the lights, its failure should not be a surprise when the lights stop working as intended.

As a result, it is not a good idea to drive around with a bad or dead battery because your car could suddenly stop working.

That’s why you should call a mechanic right away if your battery is dead or has gone bad. Allow them to determine whether the problem is with your voltage regulator or another electrical component. The mechanic will also inform you if a new battery is required.

2. You Have Dim Lights

When the car lights keep dimming or flickering, this is another sign that the voltage regulator is malfunctioning. Given that the voltage regulator’s job is to maintain the power supply to the lights, it should come as no surprise when this component fails and the lights cease to function properly.

Your headlights, dashboard lights, and even your audio system may be affected by this problem. Your voltage regulator might be to blame if these parts appear to be failing or not working at all.

More specifically, you might observe that the vehicles:

  • Even without your intervention, headlights alternate between being bright and dim.
  • The high beam isn’t functioning as it should.
  • The lights inside start to flicker.

These symptoms typically point to a faulty voltage regulator that cannot control the output voltage generated. And if you notice these symptoms, get your car checked out by a qualified mechanic right away to fix the voltage regulator issue before things get worse.

3. You Detect Engine Performance Issues

Even the engine of your car can be impacted by a poor voltage regulator. For instance, if this auto component stops functioning properly, you might notice that your car’s engine occasionally sputters or stalls.

As you drive, it might also have trouble accelerating. If you experience this problem, it may be necessary to replace your voltage regulator so that you can resume experiencing the smooth acceleration you are accustomed to.

Variable engine performance is a typical sign of a faulty voltage regulator. What, then, does inconsistent engine performance mean?

You might observe that the engine:

  • The engine appears to sputter and struggle (as if it were choking)
  • Engine stalls, which can cause it to briefly stop running.
  • The engine only occasionally accelerates; the acceleration feels choppy.

In other words, you’ll have a frustrating driving experience because of your engine’s unpredictable or inconsistent performance. Erratic engine performance typically results from a defective regulator that is unable to regulate the output voltage level produced by the alternator.

You likely have a defective regulator if you notice that your engine performance is unusual or unpredictable. In this situation, it is best to have a qualified mechanic examine your car’s electrical systems.

3. An integrated circuit voltage regulator
An integrated circuit voltage regulator by Mister rf  / CC BY 3.0. The voltage regulator in your car is in charge of making sure that some parts always receive the right amount of electrical power. As a result, if the voltage regulator is damaged, the components of the electrical system may only operate erratically or not at all.

4. Failure of the Instrument Cluster Panel

The voltage regulator in a car is supposed to power the instrument panel. Therefore, if you notice that yours isn’t working, the voltage regulator is probably damaged.

Even though you might be able to start the vehicle, you won’t have access to a lot of information, including your speed because the speedometer won’t be functional. It is best to wait to replace the voltage regulator before operating the vehicle for this reason.

For accurate operation, the instrument cluster on the dashboard needs a specific amount of input voltage. Additionally, a damaged voltage regulator may not provide the instrument cluster with the appropriate input voltage.

As a result, your instrument cluster may display flickering gauges or, worse yet, cease to function altogether.

When your instrument voltage regulator is broken, your instrument cluster may also behave erratically.

In any case, you shouldn’t drive if the instrument cluster isn’t working, even though flickering gauges on the instrument cluster might not prevent you from doing so. Driving with flickering gauges is dangerous because you can monitor vehicle status with the gauges on the instrument cluster.

Now that you are aware of the most typical signs of a bad voltage regulator, let’s discuss what you can do to treat these signs.

5. The Readings from the Voltage Regulator are Inaccurate

You can test the voltage regulator to see if the readings are accurate if you think the voltage regulator isn’t functioning. You probably need to replace this component if, after testing the voltage regulator, you notice that the gauge’s readings appear to be changing erratically.

Fortunately, when you get it, this and any other problems should be fixed, restoring your ability to depend on your car.

Of course, merely observing one or two of these signs does not imply that your voltage regulator is unquestionably defective. If you want to figure out what’s wrong, look into other possibilities, such as indications your alternator is bad. It might be another problem that exhibits similar symptoms.

6. The Check Engine Light or The Battery Light Is On

Your dashboard engine light or battery light may occasionally turn on if your voltage regulator is malfunctioning.

The battery light comes on because a bad regulator can cause problems with your electrical system. Alternatively, the alternator diode (or leaky diode) or alternator stator problems may cause the battery light to come on.

On the other hand, unpredictable engine performance may result in the check engine light being illuminated. It can also be caused by issues with your ignition system, emission equipment, transmission system, and more.

It can be difficult to tell whether your voltage regulator is to blame for the battery light or the check engine light coming on. Numerous other factors might be at work. Because of this, you ought to have your car examined by a qualified mechanic who can make a precise diagnosis.

A few OBD diagnostic trouble codes (DTC) that could be related to the voltage regulator are listed below:

4. The Check Engine Light dash light
The ”Check Engine Light” dash light by Wikiuser100000 / CC BY-SA 3.0. If your voltage regulator is broken, it might occasionally turn on your dashboard battery light or engine light. It occurs as a result of issues with your electrical system brought on by a poor regulator. The alternator diode (or leaky diode) or alternator stator issues can also turn on the battery light.

  • Code P0560 for System Voltage Malfunction
  • Code P0561 for System Voltage Unstable
  • Code P0562 for System Voltage Low
  • Code P0563 for System Voltage High
  • Code P2502 for Charging System Voltage
  • Code P2503 for Charging System Voltage Low
  • Code P2504 for Charging System Voltage High

7. Car Goes Into an Abrupt Shut Down While Running

While you’re driving down the road, if your voltage regulator isn’t sending enough power to the battery while the engine is running, your car will shut off.

If your car isn’t getting enough voltage to operate, you’re going to have issues. Normally, this won’t be an issue unless the voltage regulator or the alternator both completely fail.

How Do You Handle Bad Voltage Regulator Symptoms?

Although it may be tempting, we don’t advise testing the voltage regulator or attempting to replace it yourself.

The voltage regulator may have an impact on the instrument cluster in addition to other things. Additionally, if the alternator voltage regulator replacement is done improperly, a potential safety hazard may result.

Contact a qualified mechanic if you experience any symptoms of a bad voltage regulator.

Just make sure the mechanic you select:

  • Has ASE certification
  • Provides a service warranty to you
  • Only makes use of premium replacement parts

What Function Does a Voltage Regulator Perform In a Car?

Sadly, there is an issue with that one-way system. It is not advisable to supply either too much or too little electricity because the battery is a very sensitive device.

For instance, if the alternator had been left to run on its own, the voltage it supplies might not have been distributed evenly back to the battery. In other words, the alternator’s output voltage isn’t constant.

The battery is forced to accept all of these volts. However, if the alternator produces too much voltage, it could seriously harm and degrade the battery.

On the other hand, if the alternator produces a voltage that is too low, it might not be sufficient to maintain the battery’s charge. The voltage regulator steps in to control the alternator’s voltage output at this point.

The voltage regulator in a car restricts the output to a comfortable range between 13.5 and 14.5 volts. This is a good sweet spot because it allows the battery to be fully charged without suffering significant wear or damage.

In addition to the battery, the latter has an impact on your car’s wiring, lights, motors, solenoids, fuses, electronics, interior accessories, and other electrical components.

Where Is the Voltage Regulator’s Location In a Car

Although older cars might have it as a separate unit, the voltage regulator is frequently installed as a component of the alternator unit. Every time the alternator produces electricity, the voltage regulator is the first stop before the battery.

The regulator has sensors that may close the circuit between the alternator and battery if the system voltage is too low (below 13.5V).

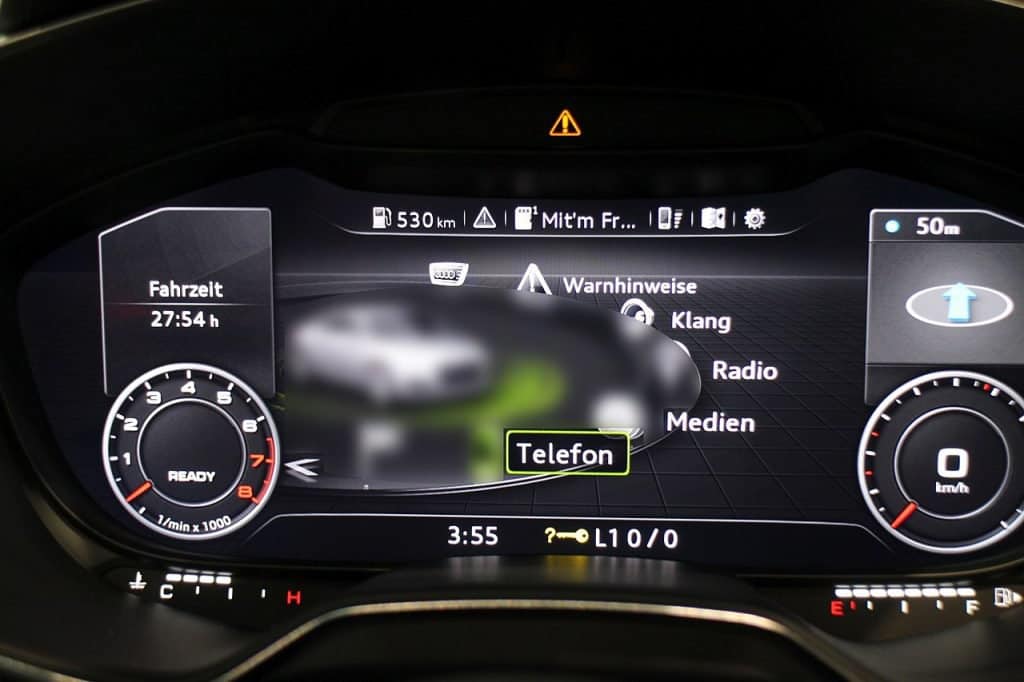

5. An Instrument Cluster Panel on an Audi
An Instrument Cluster Panel on an Audi by Robert Basic / CC BY-SA 2.0. The instrument panel in a car is powered by the voltage regulator. If yours suddenly stops functioning, the voltage regulator is probably broken. Your speed won’t be visible because the speedometer won’t be working. For this reason, it is best to postpone operating the vehicle until the voltage regulator has been replaced.

The alternator should then turn on and recharge the battery to its nominal voltage as a result of a brief current surge being sent to its field terminal. In the past, voltage regulators were frequently made as electromechanical components. This means that it can physically interrupt the circuit to either stop or resume the flow of electricity.

However, in contemporary automobiles, these components depend on electronic components to be activated, stopping or continuing the flow of voltage.

Now, the regulator can completely stop the flow of current from the alternator if the voltage is perhaps just a little bit too high (above 14.5V). This stops it from charging the battery and keeps it from being overcharged, which could cause it to blow up or burn out.

Depending on the type of alternator, it may be difficult to find the voltage regulator if it is housed inside the motor. While some manufacturers bury them, others place them in easily accessible places.

One more surprising development is that many more recent cars are beginning to integrate the voltage regulator directly into the Engine Control Module (ECM). In these systems, it is powered by a different circuit, so the voltage regulator alone cannot be changed.

Why Do Voltage Regulators Fail?

The voltage regulator in your car is typically built to be dependable and strong, and it could last the entire life of your car. Given this, it’s highly unlikely that you’ll experience symptoms of a bad voltage regulator.

Even so, they are still capable of failing eventually and displaying those telltale signs of failure. Some of the elements that contribute to the deterioration and failure of your voltage regulator include:

  • The alternator, engine, and other nearby components emit a lot of heat, which could damage the regulator’s internal parts.
  • The voltage regulator may experience a diode failure, which would “leak” current and draw it away from the battery. This typically occurs if the car hasn’t been driven for a while.
  • If there is an excessive amount of forwarding current and reverse voltage, that diode may also short itself. The diode burns out as a result of this.
  • The regulator may deteriorate much more quickly under conditions of constant electricity use, such as failing to turn off your lights.
  • Attempting to drive with a bad battery (or no battery installed) can result in significant ignition spikes because the circuit may generate up to 400V. This will cause the regulator to blow.
  • The voltage regulator may be continuously worn out by an inefficient alternator’s uneven voltage outputs.

What Is the Lifespan of a Voltage Regulator?

It can be challenging to predict the precise lifespan of your alternator voltage regulator.  However, your voltage regulator may be able to last longer than the useful life of your car in a reasonable environment.

To be more specific, many mechanics concur that the voltage regulator in your car can last up to 100,000 miles.  However, this number can decrease if your car is frequently exposed to harsh winter or summer weather conditions.

How Much Does a New Voltage Regulator Cost?

What can you do to make all the signs of a bad voltage regulator go away now that you’ve determined you have one? In most cases, complete regulator replacement is the only long-term fix. If you continue to drive with a subpar or malfunctioning voltage regulator, this is relatively inexpensive in comparison to fixing collateral damage.

6. A typical car engine
A typical car engine by Tennen-Gas / CC BY-SA 3.0. A bad voltage regulator can have an impact on even the car’s engine. You might observe that your car’s engine occasionally sputters or stalls if this auto part stops working properly. It might also struggle to accelerate as you drive.

Remember that the unit itself for a new alternator can cost anywhere between $200 and $500. A new battery is expensive, as is replacing the burned-out wires and fuses.

In contrast, a speedy voltage regulator replacement will cost you between $70 and $400. Of course, depending on the type, make, and model of your vehicle, the total cost of repairs will vary greatly.

We must first consider how challenging it will be to replace the regulator. Additionally, decide if you want aftermarket or OEM regulators. On average, the part costs $20 to $200.

On the other hand, labor adds $50 to $200. As voltage regulators are frequently mounted inside the alternator, your mechanic will almost always charge a hefty fee to replace the regulator.

It should be simpler to access and less complicated overall if it is mounted outside the alternator. The voltage regulator is an essential component of the alternator in some cars. This implies that even if the regulator is the only problem, you must replace the entire alternator unit. Unfortunately, this will significantly increase the repair costs.

Can I Drive with a Bad Voltage Regulator In My Car?

Driving while the regulator is broken is dangerous. You might be fortunate. Additionally, your car’s expensive parts could blow. We don’t believe the risk justifies itself. Instead, we advise having the car serviced as soon as possible.

How Is a Voltage Regulator Tested?

We have so far examined the signs of a bad voltage regulator. We can see that it has the potential to be quite serious. Since their lone electrical lifeline is unable to supply the necessary voltage, the majority of your car may become paralyzed. In other places, having too much voltage supplied by your electrics is more than enough to make them malfunction or stop working altogether.

Additionally, a malfunctioning voltage regulator is extremely lethal. Your car can break down in the middle of the road just as the safety features like the airbags or the automatic braking stop working. There is now a fire risk because your faulty voltage regulator may cause the battery to overcharge before blowing up or igniting once it fills.

However, it may not be a bad voltage regulator but rather other electrical system faults in your car that are causing these symptoms. We must therefore perform an accurate and comprehensive diagnosis. This enables us to determine whether or not the voltage regulator is to blame for them. Here is a brief guide on how to test your voltage regulator if you’re curious.

How to Test the Voltage Regulator Step-By-Step Guide

  • To start, make sure the other electrical components aren’t the problem. Checking the battery connections for cleanliness and security is one of them. In addition, make sure the drive belt is operating properly and that the battery cables are in good shape with strong ground connections.
  • If everything checks out on that end, you can start using a digital multimeter to test the voltage regulator. Park your car securely before you begin, and keep it in the park or neutral.
  • Select 20V (volts) on the scale after setting the multimeter to read “DC Voltage” at this point.
  • After that, attach the red lead of the multimeter to your battery’s positive (+) terminal and the black lead to its negative (-) terminal.
  • Next, start the car with assistance and allow it to run at a speed of about 1,500 RPM.
  • You can accurately read your multimeter in this manner. Keep in mind that the battery’s output is rated at 12.6V or, at the very least, 12.4V. As soon as the engine starts, the voltage reading should be 2V higher, or roughly 14.6V.
  • When the engine is running and the voltage reading is lower than 13V or higher than 16V in either case, there is unquestionably a problem with the voltage regulator.

7. Alternator silver in colour mounted on a V8 engine

A brief current surge sent to the battery’s field terminal should then cause the alternator to start and recharge the battery to its nominal voltage. Voltage regulators were frequently produced in the past as electromechanical parts. This implies that it can physically disrupt the circuit to interrupt or restore the flow of electricity.

The Conclusion

That concludes our discussion of the signs of a bad voltage regulator. As we’ve learned, they can be quite subtle because their symptoms are the same as those of an alternator that is failing or an older battery.

You must therefore be skilled at correctly diagnosing the current problem. This is done to determine whether the voltage regulator is actually what is causing these symptoms.

Otherwise, a misdiagnosis may have expensive repercussions. A bill of between $70 and $400 is not horrendously expensive in the world of automotive repairs, even though it is not the cheapest solution.

Given how important the voltage regulator’s function is, we can think of it as being relatively affordable. If you choose to ignore it, your car may end up with additional, more serious damage.
